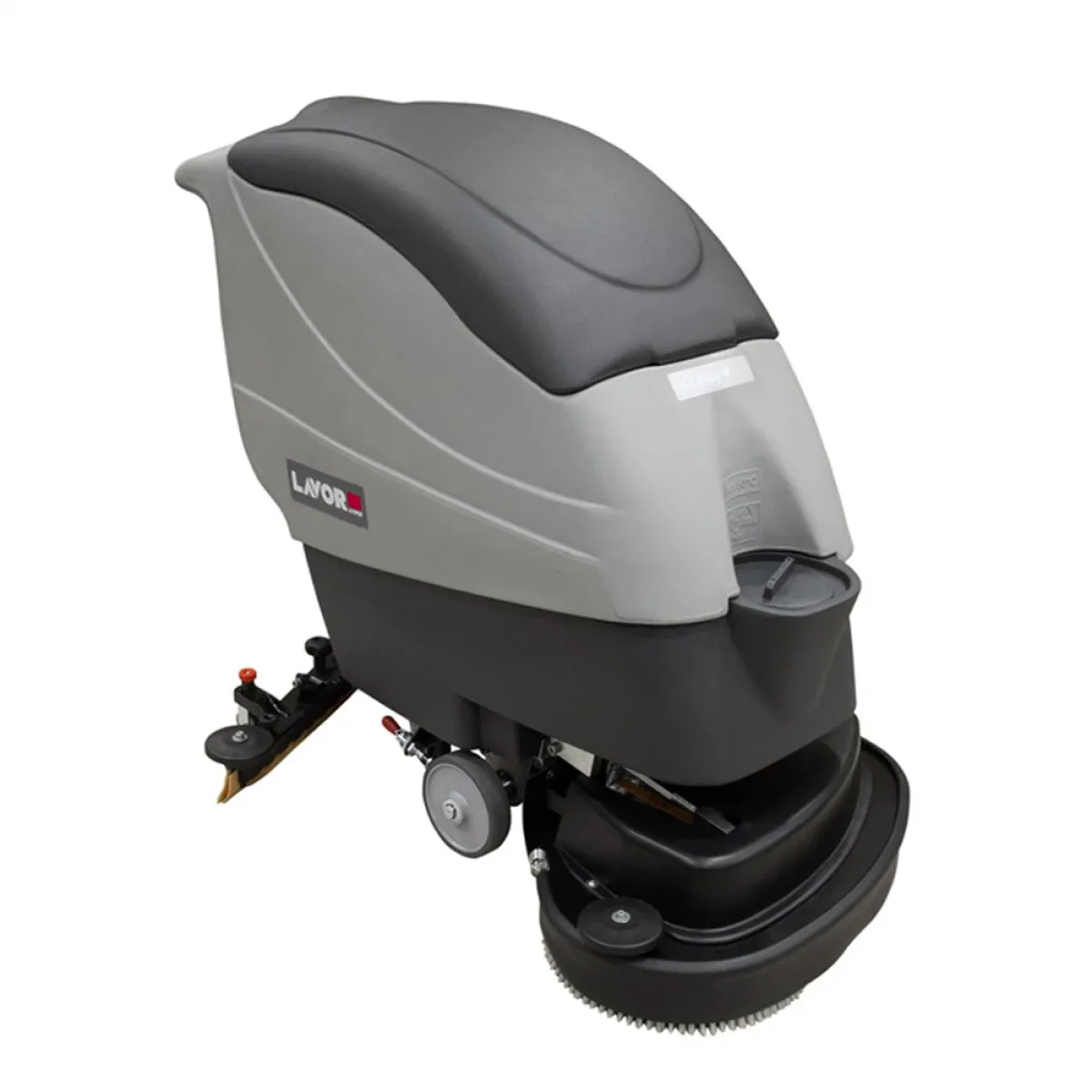

Lavor Easy-R 50BT Floor Scrubber

Lavor Easy-R 50BT Floor Scrubber

General Overview and Key Features

The Easy-R 50BT Floor Scrubber is a professional machine designed for fast, uniform, and safe cleaning on high-traffic floors. With a theoretical cleaning capacity of up to 2475 m²/hour, it delivers uninterrupted results in large areas. Its 550 mm brush width and 800 mm vacuum width enable effective washing and fast drying in a single pass. The 75-liter clean water tank and 95-liter dirty water tank reduce downtime during long cleaning sessions. The transmission-assisted drive system helps the operator maintain full control with minimal effort.

Technical Performance and Equipment

Power Supply and Continuity

The machine operates on a 24 V system powered by 2 × 12 V 140 Ah batteries. This architecture provides cable-free, uninterrupted operation throughout long shifts. The solenoid valve–controlled water output ensures consistent dosing and helps optimize chemical consumption.

Brush System and Mechanical Action

The 600 W brush motor running at 150 rpm quickly breaks down dirt layers. The 550 mm brush width, combined with overlapping-line technique, allows large areas to be completed efficiently. Reducing speed in more stubborn areas increases contact time and enhances stain removal.

Vacuum Path and Fast Drying

The 450 W vacuum motor and 800 mm vacuum width collect detergent water in one pass. This design allows the floor to be reopened to foot traffic immediately after cleaning, reducing slip risk and improving operational safety.

Tank Structure and Body Balance

The 75-liter clean water tank and 95-liter dirty water tank reduce interruptions on long routes. The 97 kg body supports even pressure distribution on the floor, ensuring a streak-free, uniform finish. The 128 × 71 × 106 cm dimensions allow easy maneuvering through doorways and narrow corridors.

Usage Method and Recommendations

Preparation Stage

Fill the clean water tank with a detergent mixture according to manufacturer instructions. Check the brush, vacuum squeegees, wipers, and hose connections. Sweep large debris from the floor before washing. Ensure the battery level is sufficient for the working duration.

Cleaning Application

Start the machine, lower the brush onto the floor, and activate the wash-vacuum mode. Move at a steady pace along straight lines, overlapping each pass by 30–40% to avoid gaps. Reduce speed in heavily soiled sections to increase contact time. Ensure the squeegee makes full contact with the floor in corners and edges.

Rinsing and Shutdown

At the end of the route, make a final pass to remove remaining moisture. Empty the dirty water tank, then rinse the tank, vacuum channels, and hoses with clean water. Remove and wash the brush and squeegees separately, allowing them to dry. Connect the battery to the charging unit to begin a full charge cycle.

Maintenance and Safety

Clean filters and water lines regularly. Replace worn vacuum squeegees to avoid streaks. Do not let chemical residue sit in tanks or hoses. Store the machine on a dry, flat surface and ensure the battery connections are switched off when not in use.

Application Areas

The Easy-R 50BT is suitable for achieving standardized floor hygiene in shopping mall corridors, retail spaces, school and hospital blocks, hotel common areas, sports facilities, production and warehouse floors, and administrative buildings. The transmission-assisted drive system enhances controlled movement even in crowded and obstructed areas.

The Easy-R 50BT Floor Scrubber offers a 24 V battery system, 2475 m²/hour capacity, 550 mm brush width, and 800 mm vacuum width for high efficiency, fast drying, and repeatable quality. With solenoid valve water management, large tank capacities, and its transmission-powered drive system, it provides a reliable and long-lasting solution for large-area maintenance.

Lavor Easy-R 50BT Floor Scrubber – 24 V, 2475 m²/h, 550 mm Brush

Lavor Easy-R 50BT: 24 V battery system, 2475 m²/h capacity, 550 mm brush, 800 mm vacuum width, 75/95 L tanks, and transmission drive for fast, dry, and efficient cleaning.
