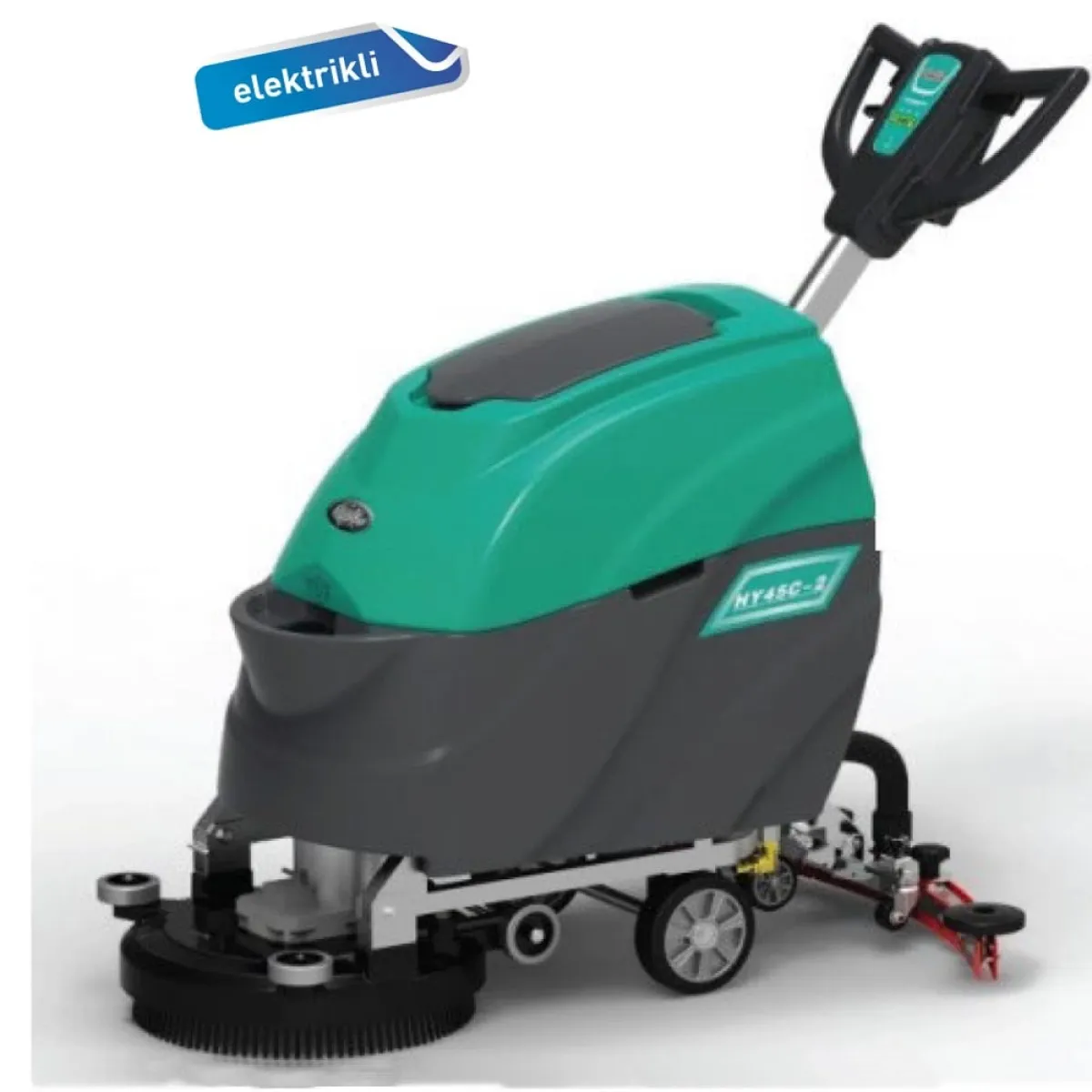

Lavor HY45C Floor Scrubber

The HY45C Floor Scrubber is a high-performance cleaning solution designed for deep cleaning of medium-sized surfaces. Powered by a 230 V energy system, it provides a theoretical cleaning capacity of 1820 m²/h, making it ideal for industrial and commercial environments. With a 455 mm brush diameter and a 760 mm squeegee width, it covers wide areas in a single pass. The 35-liter clean and dirty water tank capacity reduces downtime during long cleaning sessions. Its 550 W brush motor and 88 kg overall weight ensure consistent downward pressure on the surface, allowing dirt and residue to be fully removed.

Technical Performance and Features
Powerful Brush for Deep Cleaning
The 455 mm brush effectively removes dirt, grease, and surface residues. The 550 W motor maintains a stable rotation speed, providing uniform brush pressure across the entire surface. This ensures reliable cleaning results on both smooth and textured floors.

Vacuum and Squeegee System
The 760 mm squeegee collects dirty water in a single pass. Combined with the strong vacuum system, the floor dries within minutes. This greatly reduces slip hazards and allows the cleaned area to be put back into use quickly.

Tank Capacity and Body Structure
The 35-liter clean and dirty water tanks provide sufficient volume for long cleaning cycles. Made from durable polyethylene, the tanks resist chemicals and impacts. With dimensions of 1050 × 610 × 1190 mm and a weight of 88 kg, the machine offers stability and robust handling.

Energy Efficiency and Safety
Operating at 220–230 V / 50 Hz, the HY45C delivers high efficiency with minimal energy consumption. Its insulation and grounding system provide maximum operator safety. The quiet operating noise makes it suitable for noise-sensitive spaces such as offices and hospitals.

Usage Instructions and Recommendations

Preparation
Fill the clean water tank with the appropriate detergent mixture. Ensure that the electrical connection is safe. Check the condition of the brush and squeegee blades. Sweep large debris from the floor before starting.

Cleaning Application
Start the machine, lower the brush, and activate the scrub-and-vacuum mode. Move in straight lines, overlapping each pass by about 30% to avoid missed areas. Reduce speed in heavily soiled zones to increase scrubbing power. Ensure the squeegee remains in full contact with the floor during turns.

Rinsing and Shutdown
After finishing, empty the dirty water tank and rinse it with clean water. Clean and dry the brush and squeegee. Disconnect the power cable and store the machine upright in a dry place.

Maintenance and Safety
Regularly clean the tanks and hoses. Inspect the vacuum squeegee and brush for wear. Coil the power cable neatly and avoid crushing or bending it. Do not leave chemical residues inside the tanks for extended periods.

Application Areas
The HY45C is suitable for use in hotels, schools, hospitals, gyms, office buildings, supermarkets, and production facilities. It delivers high shine and hygiene on both smooth and hard floors. Its strong motor and stable body design make it durable for intensive daily use.

The HY45C Floor Scrubber offers 1820 m²/h capacity, a 455 mm brush width, a 760 mm squeegee width, and a 35-liter tank volume—providing a powerful, durable, and economical cleaning solution. With quiet operation, easy maintenance, and high efficiency, it meets professional cleaning standards with ease.
